Lycoming engine conversion from constant speed to fixed pitch propeller

Included with our Lycoming IO-360-M1B documentation are several Service Instruction bulletins. One of these, Service Instruction No. 1435 (April 25, 1986, latest confirmed by visiting Lycoming's website) is titled:

Part I: Conversion from Constant Speed to Fixed Pitch Propeller and Vice Versa
Part II: Propeller Governor Oil Line Nut and Elbow

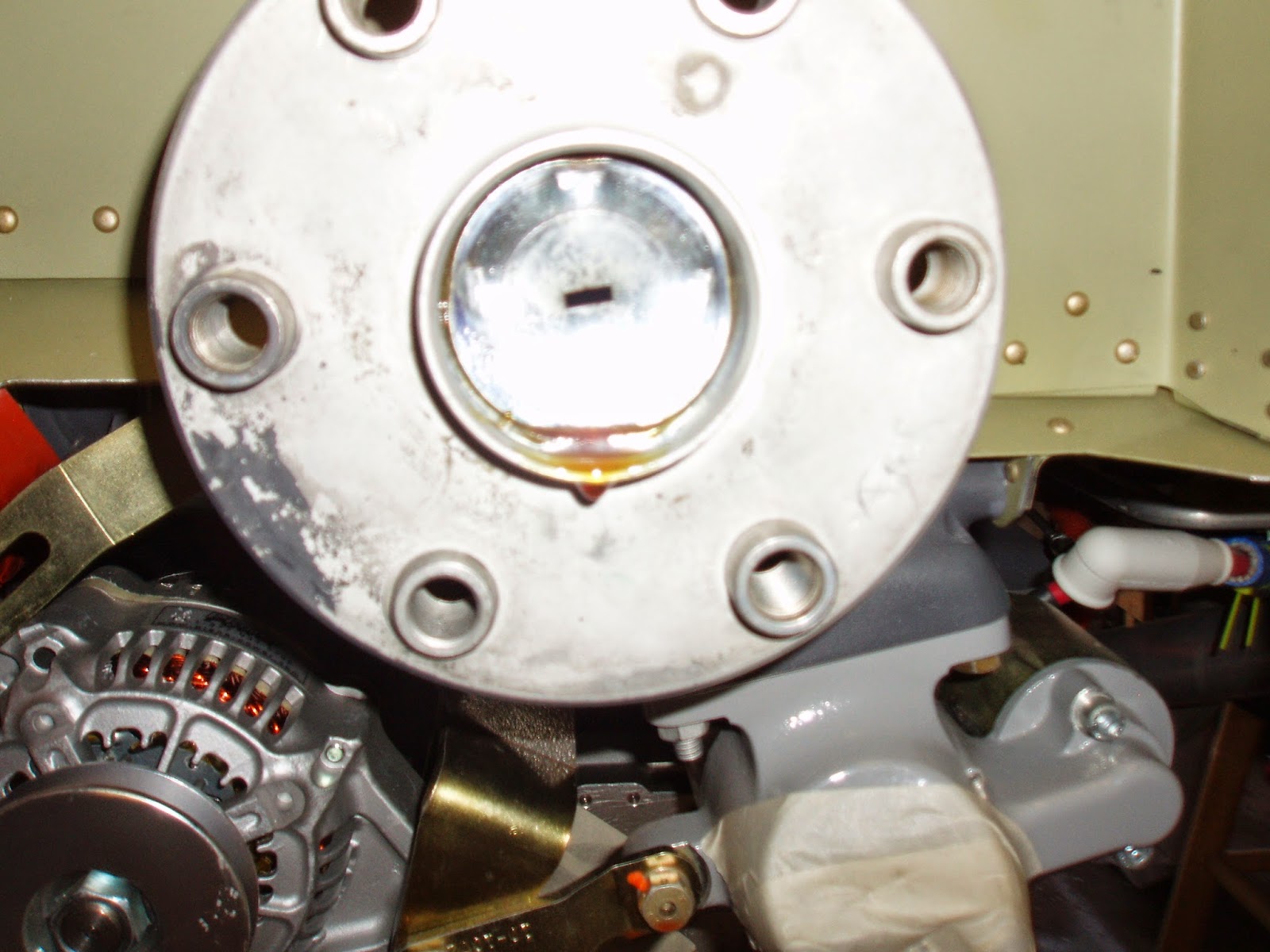

Punctured outer expansion plug. This plug must be fully removed.

The initial thought was that the engine could be left as is and simply not use the constant speed accessories already installed on the engine. That is, until the Service Instruction states..."The...adapter, oil line and fittings are no longer required and should be removed." A call to Lycoming confirmed that we need to perform the conversion on our engine...The representative had some encouraging reasons though. Removal of the prop governor adapter removes a good chunk of weight off the accessory section of the engine, and these parts will not experience unnecessary wear while still installed on the engine.

In addition, the crankshaft must also be converted by first removing the outer expansion plug (see above image)  in order to access a second expansion plug deeper inside the crankshaft. This second plug must be punctured and then a new outer expansion plug reinstalled (outer expansion plug - Lycoming P/N STD-1211 available from Aircraft Spruce, P/N 07-00894). This can be a bit unnerving when trying to figure this out from the drawings in the Service Instruction.

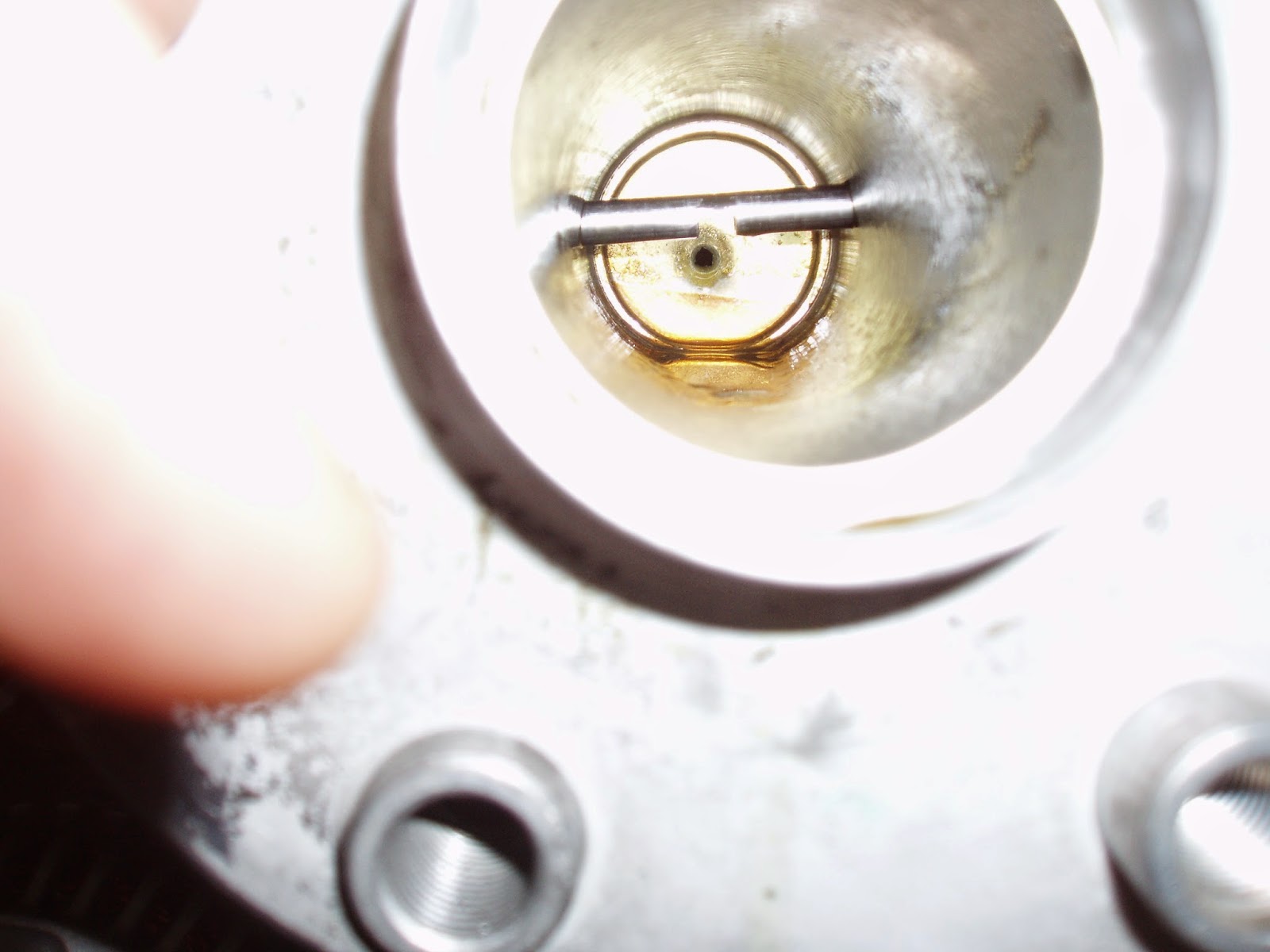

Inner expansion plug shown after puncturing. Care must be taken not to damage the oil return tube in front of expansion plug when puncturing.

Installing a new outer expansion plug completes the engine conversion.  Per reference to the Lycoming overhaul manual and discussion with the Lycoming representative, installation of the new replacement outer plug requires fabrication of a large diameter drift with a rounded face, he also suggested installation with high temperature Loctite.
Finishing touches included installation and safety-wiring a plug in the previous governor hose installation location at the front of the block. (image)
